Sab saum toj 5 Daim Ntawv Thov rau 635–665W Dual-Iav Solar Panels
Master 635W–665W dual- iav hnub ci vaj huam sib luag kev koom ua ke rau kev siv hluav taws xob, agri-PV, thiab qhov chaw hnyav. Maximize bifacial zog nce thiab txo tus nqi BOS.

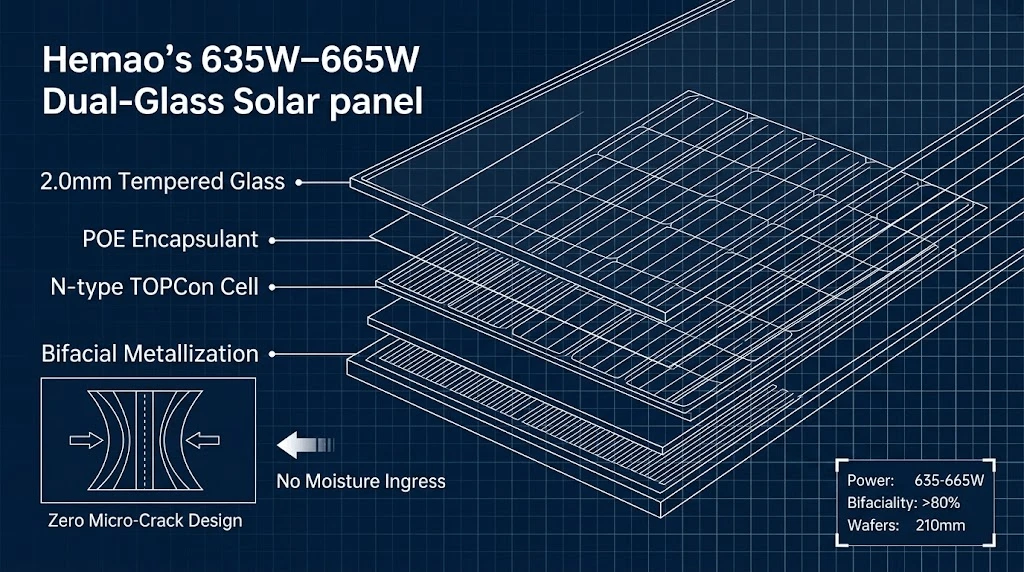

Core Mechanisms ntawm 635W–665W Dual-Iav Architecture
Kev hloov pauv mus rau ultra- siab- lub zog modules - tshwj xeeb hauv 635W–665W ntau yam - tso siab rau 210mm N- hom TOPCon lossis HJT wafer hom ua ke nrog dual - iav qauv tsim. Hloov cov ntaub ntawv ib txwm siv nrog ob txheej ntawm cov iav thermally toughened (feem ntau 2.0mm lossis 3.2mm) ua rau txhim kho kev ncaj ncees thiab ib puag ncig tiv thaiv.
· Micro-Kev txo qis qis:Dual- iav symmetrical stress distribution tiv thaiv micro- tawg thaum lub sij hawm siab - cua load tej yam kev mob, thermal cycling, thiab tsheb thauj mus los. Tsis zoo li monoglass panels uas warp nyob rau hauv asymmetric thermal expansion, dual - iav configurations cais lub hnub ci hlwb los ntawm mechanical shearing rog.
· Zero Dej Vapor Permeability:Synthetic backsheets raug kev txom nyem los ntawm kev ya raws nyob rau hauv 25-xyoo lub neej, ua rau EVA degradation thiab muaj peev xwm-Induced Degradation (PID). Iav muaj nyob ze -zero permeability, khaws cia cell metallization nyob rau hauv high-humidity ib puag ncig.
· Bifaciality thiab rear -Side Power Generation:N- hom TOPCon hlwb tau txais txiaj ntsig bifaciality ntawm 80% ± 5%. Sab nraub qaum khaws cov hluav taws xob albedo, txhawb nqa lub zog tso zis yam tsis muaj qhov xav tau hneev taw ntxiv.
5 High-Cov ntawv thov kev lag luam thiab kev siv hluav taws xob

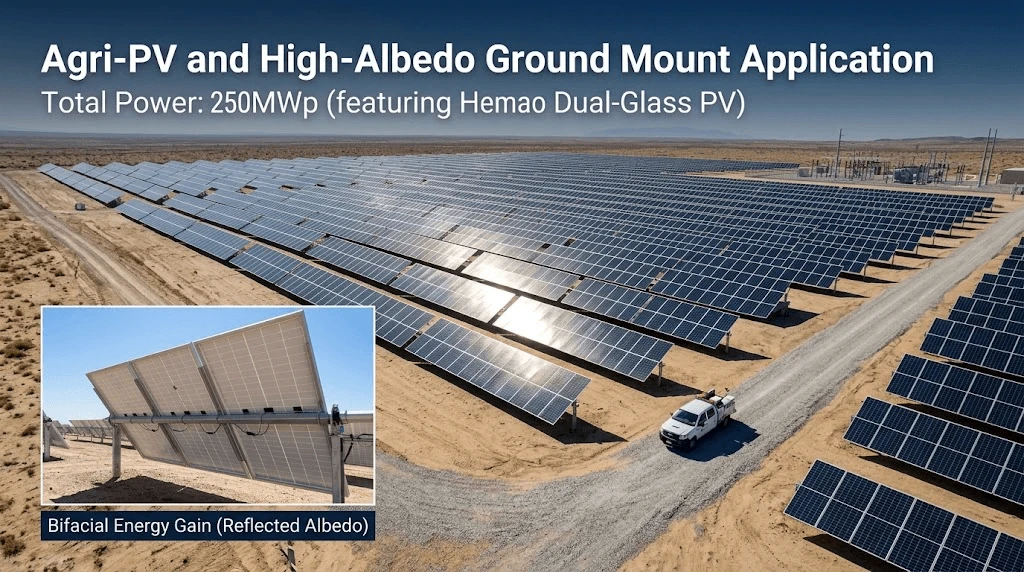

1. Loj -Nqe Utility Ground Mounts
Siab -wattage 635W–665W modules streamline hluav taws xob layout tsim. Cov khoom siv hluav taws xob ntau dua tuaj yeem txo qhov xav tau ntawm cov hlua, cov thawv sib txuas, thiab cov cabling.
2. Agri-PV (Agrivoltaics) Systems
Dual- iav vaj huam sib luag muab cov txheej txheem nruj uas xav tau rau kev txuas ntxiv tracker spans hauv kev ua liaj ua teb. Cov kev xaiv kis tau zoo dua tso cai rau cov qoob loo loj hlob ncaj qha hauv qab PV array thaum tsim lub zog huv.
3. Floating Solar (FPV) Projects
Nrog rau xoom ya raws-ingress profile, dual- iav panels tiv thaiv cov av tsis tu ncua thiab tiv thaiv PID, ua kom lub sij hawm ntev - tawm los ntawm cov reservoirs thiab cov dej hauv dej.
4. Ntug hiav txwv thiab siab -Salinity Installations
Ntsev-mist corrosion degrades standard backsheets nyob rau hauv 7-10 xyoo. Dual- iav modules tiv thaiv cov huab cua tshuaj lom neeg, xuab zeb puas, thiab cov av noo nyob hauv thaj chaw marine.
5. Siab-Albedo Daus thiab suab puam ib puag ncig
Cov xuab zeb qhuav thiab cov daus saum npoo ua rau muaj txiaj ntsig albedo siab (30%--80%). Dual-glass bifacial modules ua kom lub zog ntawm sab nraub qaum nyob rau hauv cov huab cua sov thiab thaj chaw.
Technical Specifications thiab ROI cuam tshuam
Kev xa tawm 635W–665W dual- iav vaj huam sib luag ncaj qha txo cov kev siv nyiaj tshuav ntawm Qhov System (BOS) los ntawm kev ua kom zoo ntawm kev siv khib nyiab, cable khiav, thiab cov kev xav tau ntawm kev tsav tsheb.
|
Technical Parameter |
Standard 550W Ib - iav Module |
Hemao 650W Dual -Iav Bifacial Module |
Engineering Impact |
|
Module Efficiency |
21.30% |
21.5%–22.8% |
Siab zog tso zis ib m2 |
|
Bifaciality Factor |
N / A lossis ≈70% |
80%±5% |
Txog li 30% ntxiv rear- sab zog tawm los |
|
Ib xyoos twg degradation |
0.55% (p- hom) |
0.40% (N-hom TOPCon) |
Lub neej muaj zog ntau dua |
|
Kev siv lub peev xwm Tracker |
100% hauv paus |
+18% zog ceev rau ib tus tracker |
Txo tag nrho cov tracker units yuav tsum tau |
|
BOS Savings (USD/W) |
Lub hauv paus |
-$0.015 to-$0.025/W |
Tsawg racking, kev ua haujlwm, thiab cov nqi cabling |
|
PID Resistance |
Txuj |
Zero ya raws -induced PID |
Cov nqi kho mob qis dua |
LCOE Impact suav nrog
Los ntawm kev txo cov module suav ib megawatt, EPCs txuag ntawm pawg tsav tsheb, mounting hardware los ua ke, thiab DC hlua cabling.
Kev Tswjhwm Zoo thiab Kev Ua Raws Li Txheej Txheem Thoob Ntiaj Teb
Txhua lub vaj huam sib luag tau soj ntsuam nruj ua ntej ua zaub mov xa tuaj:

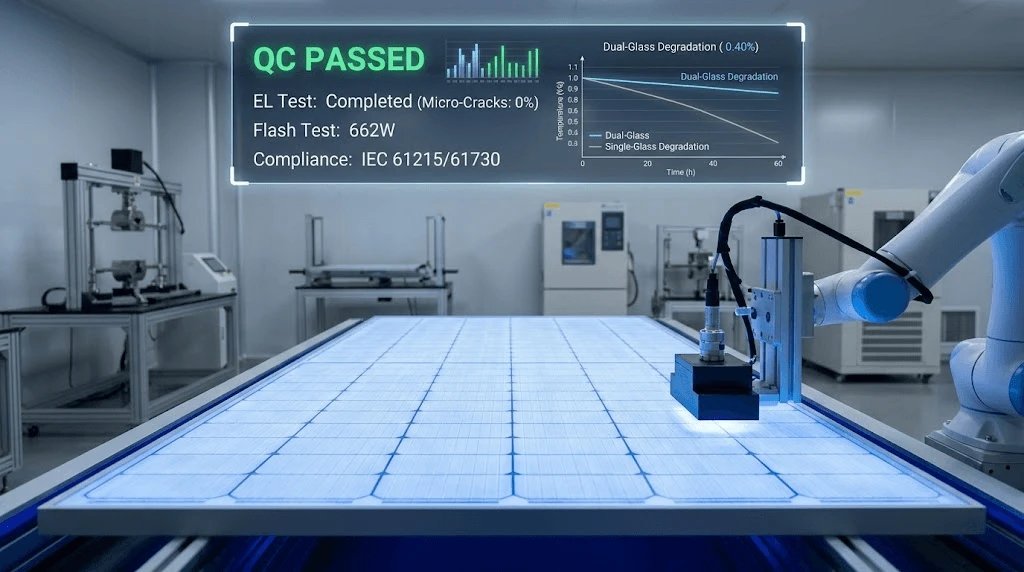

Triple EL (Electroluminescence) Kev Xeem:Ua ntej lamination, tom qab lamination, thiab ua ntej ntim zaum kawg kom paub tseeb tias xoom micro- tawg.
Mechanical Load Testing:Standardized rau 5400Pa pem hauv ntej load (dawb) thiab 2400Pa rear load (cua).
Environmental Certifications:Cov ntawv pov thawj tiav raws li IEC 61215, IEC 61730, IEC 61701 (Ntshav Mist Corrosion), thiab IEC 62716 (Ammonia Corrosion).
FAQ
Yuav ua li cas 635W–665W dual- iav vaj huam sib luag ua haujlwm nyob rau hauv huab cua huab cua thiab siab -Salinity tej yam kev mob?
Lub symmetrical structural iav- iav sandwich mitigates cell-theem mechanical stress, tswj kev ncaj ncees txog li 2400Pa dynamic cua load. Dual iav muab ib qho kev thaiv tsis pub muaj dej noo thiab ntsev- tshuaj tsuag ingress, tiv thaiv cov tshuaj corrosion ntawm cov nyiaj gridlines thiab cell interconnections.
Cov qauv kev thauj mus los thiab ntim khoom yog dab tsi los tshem tawm cov micro- tawg thaum hla dej hiav txwv?
Modules tau ntim vertically nyob rau hauv kev txhawb zog, noo noo-resistant ntoo ncej nrog kaum tiv thaiv thiab tiv thaiv- vibration padding. Hlau- cov hnab ntim cov hlua khi tiv thaiv tilting thaum lub sij hawm thauj cov thawv rau nkoj thiab chaw nres nkoj unloading.
Dab tsi yog kev cai engineering xaiv (OEM/ODM) muaj rau loj - cov dej num loj?
Customization xaiv muaj xws li tailored cable ntev configurations rau tracker integration, tshwj xeeb thav duab xim thiab anodization txheej thickness (15 µm+ rau cov ntug dej hiav txwv zones), ua ntej -assembled connector hom (MC4-EVO2), thiab embedded RFID nrhiav cov cim npe rau kev tswj cov khoom vaj khoom tsev.
Hu rau peb pab pawg engineering rau kev kho 5kW PV system layout thiab cov ncauj lus kom ntxaws BOM hauv 48 teev.
