Kev tshuaj xyuas Internal Architecture ntawm High-Efficiency Solar Inverters

Kev tshuaj xyuas Internal Architecture ntawm High-Efficiency Solar Inverters

Kev tsom xam ntawm kev lag luam hnub ci inverter sab hauv architecture, dual-theem topology, siab-voltage MPPT efficiency, thiab thermal dynamics.

Thermal and Electrical Bottlenecks in Commercial PV Fais fab Hloov

Kev lag luam hnub ci kev lag luam ntsib cov nyiaj tau los tsis tu ncua los ntawm thermal derating, txoj hlua tsis sib haum nyob rau hauv qhov sib txawv ntawm irradiance, thiab kev hloov pauv siab ntawm qhov kub siab. Cheebtsam tsis ua hauj lwm hauv DC-AC hloov pauv theem nyiaj rau ntau dua 40% ntawm kev hu xov tooj tsis tu ncua hauv kev siv hluav taws xob thiab kev lag luam-thiab-kev lag luam (C&I) cov haujlwm.

Cov lus qhia no txheeb xyuas lub rooj tsav xwm sab hauv- theem architecture, thermal dissipation dynamics, thiab MPPT tracker kev koom ua ke ntawm siab -txoj hlua inverters. Nws muab EPC engineers thiab procurement specialists nrog cov txheej txheem nyuaj rau kev ntsuam xyuas lub zog theem kev cia siab, txo qhov system Levelized Cost of Energy (LCOE), thiab xyuas cov khoom pov thawj- qib kev ruaj ntseg.

Kev tshuaj ntsuam xyuas: Board-Level Architecture thiab Core Mechanisms

Dual-Theem Siab-Frequency Topology

High-txoj hlua ua haujlwm tau zoo siv dual-theem zog hloov dua siab tshiab architecture. DC-DC boost theem ntsuas sib txawv ntawm txoj hlua voltages mus txog qhov siab ruaj khov-voltage DC tsheb npav (600V-900V), uas pub rau DC- AC inverter theem.

· Fais Fab Semiconductors: Hloov cov cuab yeej cuab tam IGBTs nrog kev sib cais ntawm Silicon Carbide (SiC) MOSFETs txo cov kev rov qab los poob txog li 73%. SiC semiconductors pab hloov zaus tshaj 50 kHz, tso cai rau kev siv cov inductors me me thiab zaj duab xis capacitors yam tsis muaj kev sib haum xeeb tag nrho (THD).

· 3-Phase Neutral Point Clamped (NPC) Topology: Ntau theem NPC topologies txo qhov kev ntxhov siab ntawm cov hluav taws xob hloov hluav taws xob (VDC/2 rau ib lub cuab yeej), txo qis dV / dt degradation ntawm transformerless kab sib txuas thiab ua tiav kev hloov pauv siab ntawm 98.6%.

High -Voltage MPPT Kev koom ua ke nrog Wide Tracking Window

Dual-stage architectures feature dynamic siab tshaj plaws lub zog taw tes nrhiav (MPPT) circuits uas tau tsav los ntawm 32-ntsis digital teeb liab processors (DSPs):

Dav MPPT Kev Ua Haujlwm Ntau: Taug qab qhov rais hla 200V txog 1000V tso cai rau ntxov- pib thaum sawv ntxov thiab lig- yav tsaus ntuj sau, txuas ntxiv lub zog hluav taws xob txhua hnub los ntawm 45 mus rau 90 feeb.

Dual/Multi -MPPT Routing: Dual-channel MPPT taug qab cais ib feem shading poob hla cov hlua tsis sib haum. Kev ntsuas tam sim no los ntawm kev kaw-voj Hall effect sensors pub tiag tiag-lub sijhawm voltage / tam sim no metrics rau hauv siab- ceev perturb-thiab- saib (P&O) algorithms ua haujlwm ntawm 100 Hz sampling tus nqi.

Txhim kho Thermal & Protection Architecture

Thaum tshav kub kub buildup nyob rau hauv lub hwj chim semiconductors doubles nyob rau hauv tsis ua hauj lwm tus nqi rau txhua txhua 10℃nce nyob rau hauv hlws ris kub ($Tj$).

Anodized Aluminium Thaum tshav kub kub-Cink Extrusion:Lub zog tseem ceeb hloov pauv ncaj qha mus rau txias-forged aluminium heatsinks featuring tus pin-fin geometries uas ua kom thaj tsam loj tshaj li 40% txheeb ze rau cov qauv extruded fins.

Sealed Compartment Isolation:Sab hauv layouts cais cov hluav taws xob hluav taws xob (tshav kub-tsim cov khoom xws li inductors thiab choj modules) los ntawm cov khoom siv hluav taws xob tswj tsis zoo (DSP, rooj tsav tsheb, rooj sib txuas lus). Cov hluav taws xob hluav taws xob nyob hauv IP66-sealed chamber txias los ntawm kev yuam cua, cais lub ntsiab PCB los ntawm cov plua plav tsub zuj zuj thiab corrosive ambient cua.

Kev tiv thaiv Surge:Hom II (los yog xaiv hom I + II) hlau oxide varistors (MOVs) tiv thaiv ob qho tib si DC thiab AC terminals tiv thaiv xob laim -induced transient surges.

Kev lag luam Standards thiab nyiaj txiag ROI cuam tshuam

Kev sib piv ntawm cov qauv Specification: Standard vs. Industrial-Qib Inverters

Kev Ntsuam Xyuas Nyiaj Txiag: LCOE thiab Yield Optimization

Rau 1MW kev lag luam ru tsev ua haujlwm tshaj 25-xyoo lub neej:

Efficiency Yield Differential: Ib qho 0.8% nce hauv kev hloov pauv kev ua tau zoo yields kwv yees li 12,800 kWh ntawm ib xyoos ntxiv ib MW ntsia.

Kev Tiv Thaiv Thermal Derating: Tiv thaiv kom tsis txhob derating ntawm 40℃thiab 50℃rov qab mus txog 4% ntawm lub zog poob tawm thaum lub caij ntuj sov irradiance lub hlis.

LCOE cuam tshuam: Kev sib xyaw ua ke nce ntxiv thiab txo cov kev hloov pauv hloov pauv txo tag nrho LCOE los ntawm $ 0.004 / kWh rau $ 0.007 / kWh, rov qab pib kho vajtse nqi qis dua 18 lub hlis ntawm kev ua haujlwm.

System Integration thiab Quality Control Protocols

Peb cov txheej txheem tsim khoom siv tag nrho cov chav hloov hluav taws xob hloov mus rau ntau-phase tswj kav dej:

Txhawm rau koom ua ke ua tiav cov haujlwm ua lag luam, peb lub siab - lub peev xwm txoj hlua platform ua haujlwm nrog rau kev sib npaug tshwj xeeb- ntawm - cov khoom siv kho vajtse, suav nrog qis dua - muaj peev xwm faib khoom xws li peb10 kW ntawm -Grid Inverterqauv rau cov lag luam me me sub-arrays.

Kev Ua Raws Cai

Kev Nyab Xeeb & Daim phiaj kev sib txuas: IEC/EN 62109-1, IEC/EN 62109-2, VDE-AR-N 4105, EN 50549-1.

EMC Cov QauvEN 61000-6-2, EN 61000-6-4.

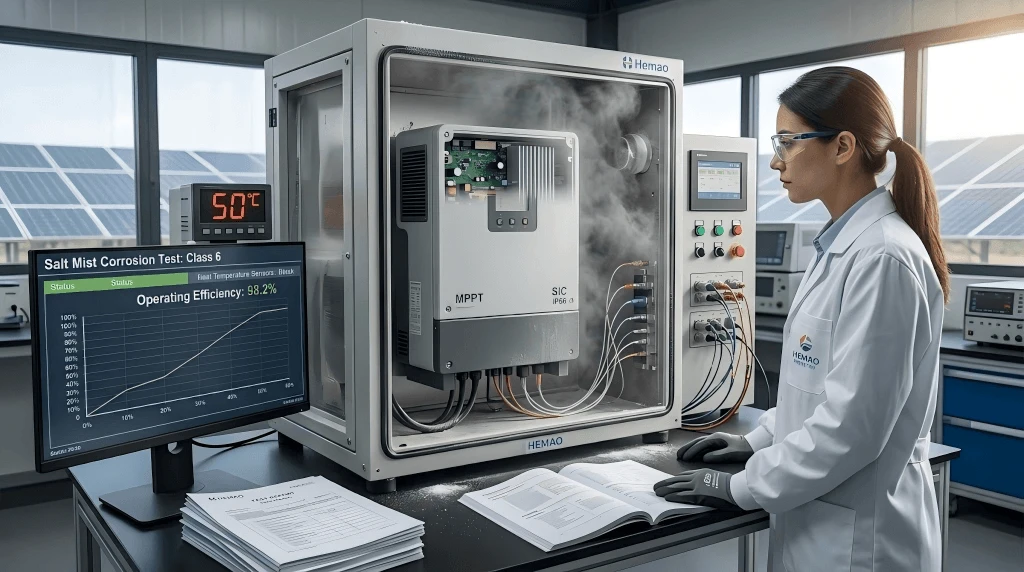

Environmental EnduranceIEC 60068-2-52 (Salt Mist Corrosion Class 6), IP66 plua plav thiab dej ingress tiv thaiv.

FAQ

Q: Yuav ua li cas lub dual -chamber txias architecture tiv thaiv cov khoom ua tsis tiav nyob rau hauv siab - ntsev los yog av ntub dej hiav txwv installation?

A: Lub dual -chamber tsim cais lub ntsiab tswj PCB los ntawm qhov siab -lub zog thermal dissipation cheeb tsam. High-cov khoom siv cua sov (inductors thiab heatsinks) yog nyob rau hauv ib qho chaw sab nraud airflow channel ntsuas IP66, tso cai rau huab cua nyob ib puag ncig kom txias qhov chaw fin. Kev tswj xyuas hluav taws xob, lub rooj vag tsav tsheb, thiab cov khoom siv hluav taws xob muaj nyob hauv ib qho sib cais, kaw IP66 uas muaj cov nitrogen qhuav los yog kaw tiv thaiv kev sib pauv huab cua, tshem tawm ntsev- huab cua condensation thiab conductive plua plav deposition ntawm siab -voltage traces.

Q: Kev ntim khoom thiab kev tiv thaiv kev thauj mus los dab tsi yog siv los tiv thaiv micro- pob txha hauv PCB cov rooj sib tham hauv lub sijhawm xa tawm ntau?

A: Inverters tau ntim rau hauv ISPM 15-raws li, cua sov- kho ntoo crates lined nrog siab -density expanded polyethylene (EPE) shock-mob ua npuas ncauj haum rau lub chassis qhov ntev. Tag nrho cov khoom hnyav sab hauv-xws li cov hlau nplaum inductors thiab cov capacitors tseem ceeb- yog anched rau lub ntsiab chassis thav duab uas siv cov cuab yeej cuab yeej cuab tam es tsis yog cia siab rau kev tuav tuav nkaus xwb. Cov khoom xa tuaj suav nrog ib zaug -siv 3D qaij- thiab cuam tshuam sensors los taug qab kev thauj mus los.

Q: Dab tsi yog cov txheej txheem kev ua haujlwm thiab lub sijhawm xa khoom rau kev cai firmware lossis kho vajtse OEM hloov kho?

A: Firmware-theem customizations (hloov MODBUS RTU/TCP daim ntawv teev npe, kho dua -voltage trip thresholds, los yog integrating custom grid-support profiles) nqa validation cycle of 14 hnub ua hauj lwm. Kho vajtse-theem kev hloov kho (kev cai txheej txheej, hloov kho DC connector configurations, los yog kev cai cua sov- dab dej geometries) ua raws li ib tug 6-rau-10-lub lim tiam txoj kev loj hlob ncua sij hawm, nrog rau tag nrho cov thermal qauv, qauv tsim, thiab Hoobkas txais kev kuaj (FAT).

Hu rau peb pab pawg engineering rau kev kho 5kW PV system layout thiab cov ncauj lus kom ntxaws BOM hauv 48 teev.
