Ua kom lub roj teeb tswj kev nyab xeeb (BMS) kev nyab xeeb hauv LiFePO4 Pob
Daim ntawv qhia txog kev nyab xeeb ntawm LiFePO4 BMS, suav nrog kev sib npaug, kev tswj xyuas thermal, xov tooj ntawm tes- theem kev kuaj mob, thiab kev ua raws li thoob ntiaj teb.
Kev xa tawm ntawm lithium hlau phosphate (LiFePO4) lub zog cia tshuab (ESS) thoob plaws kev lag luam thiab kev lag luam (C&I) cov haujlwm ntsib kev ua haujlwm nruj heev. Thaum LiFePO4 chemistry nthuav tawm cov thermal stability piv rau npib tsib xee -manganese-cobalt (NMC) variants, unmitigated cell imbalance, thermal propagation, thiab tswj topology flaws tseem hem cov khoom muaj nqis mus ntev.
Ib lub xov tooj ntawm tes ua haujlwm sab nraud nws qhov pom qhov hluav taws xob zoo (2.5V rau 3.65V) tuaj yeem ua rau muaj kev cuam tshuam hauv cheeb tsam, txo cov peev txheej siv tau txog li 35% dhau 1,500 cycles. Tsis tas li ntawd, kev saib xyuas thermal tsis txaus yuav ua rau muaj kev kub ntxhov hauv cheeb tsam, ua rau lub cev poob qis thiab poob qis.
Txhawm rau tiv thaiv ntev -lub sij hawm theem ntawm tus nqi cia (LCOS), EPC cov neeg cog lus thiab cov thawj tswj xyuas qhov project yuav tsum muaj kev ruaj khov, ntau- txheej txheem roj teeb tswj (BMS) cov qauv. Qhov kev tshuaj ntsuam no qhia txog cov txheej txheem tswj hwm, ntsuas qhov topologies, thiab cov txheej txheem kuaj mob tseem ceeb rau kev siv hluav taws xob- qib LiFePO4 pob ruaj khov.
Kev Ntsuam Xyuas: Core Safety Mechanisms & Architecture

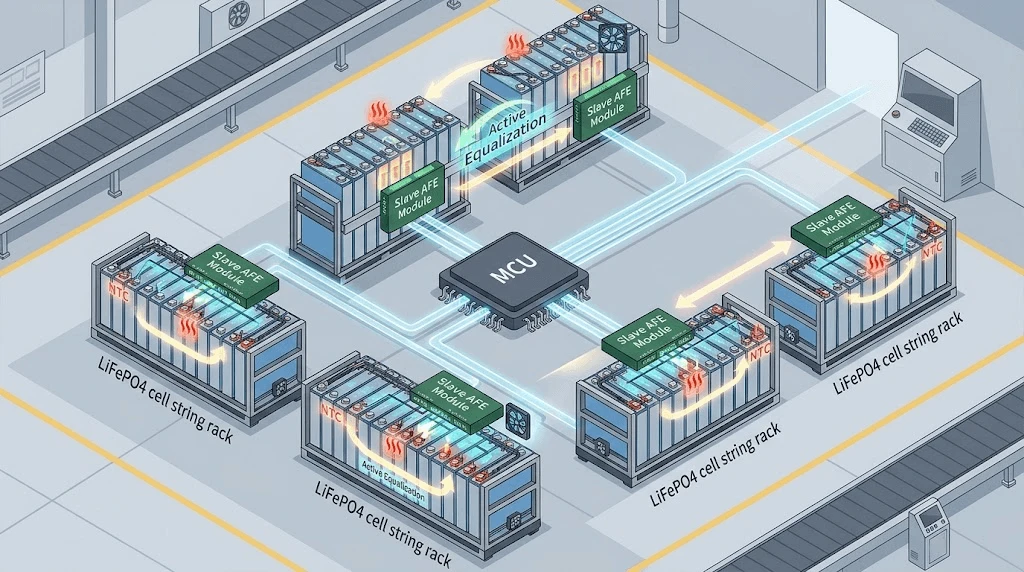

BMS uas muaj peev xwm ua tau zoo nyob ntawm tus tswv kev faib tawm - qhev architecture. Lub Analog Front-End (AFE) ICs ncaj qha saib xyuas cov pab pawg ntawm tes, hla telemetry mus rau hauv nruab nrab MCU ntawm kev sib cais CAN tsheb npav.
1. Cell-Level Voltage Monitoring & Threshold Calibration
Precision voltage sensing yuav tsum muaj nplooj siab AFE raws nrog lub teeb liab kam rau ua ntawm < ± 2 mV. Standard LiFePO4 tawm curves nthuav tawm qhov tsis tshua muaj hluav taws xob tiaj tiaj ntawm 30% thiab 80% Lub Xeev Tus Nqi (SOC), ua rau qhib -circuit voltage (OCV) txoj kev tsis txaus rau lub xeev kwv yees. Qib siab -BMS suav nrog Coulomb suav nrog txuas ntxiv Kalman lim (EKF) algorithms los taug qab SOC kom raug hauv ± 2. Cov kev tiv thaiv kev tiv thaiv yuav tsum yog kho vajtse- tswj hwm ntawm AFE txheej kom ua tiav kev ywj pheej ntawm MCU firmware latency:
Tshaj -Voltage Cutoff (OVC):3.65V (Cell theem) / Ncua sijhawm:<10 ms
Tshaj -Voltage Recovery: 3.45V
Hauv qab -Voltage Cutoff (UVC):2.50V (Cell theem) / Ncua sijhawm:<10ms
Hauv qab -Voltage Recovery:2.80V
2. Active Cell Balancing Topologies
Passive balancing burns excess energy through shunt resistors as heat, typically capped at low currents (50mA to 100mA). For high-capacity commercial packs (>100Ah), yuav tsum muaj kev sib npaug.
Cov tshuab ua haujlwm siv ob-directional DC-DC converters lossis capacitive switching networks kom hloov cov nqi los ntawm siab dua -voltage cells mus rau qis-voltage cells thaum lub sij hawm them thiab tawm mus. Los ntawm kev ua kom ntsuas qhov ntsuas tam sim no ntawm 2A thiab 5A, active topologies txo qhov muaj peev xwm poob los ntawm qhov muaj peev xwm sib txawv ntawm cov hlua loj ntawm tes, txhim kho lub zog siv tau los ntawm cov khoom muaj nqis.
3. Thermal Management & Predictive Diagnostics
Kub variation thoob ib module yuav tsum tsis txhob ntau tshaj 3 degree. Lub BMS siv qhov ntsuas kub tsis zoo (NTC) thermistors teeb tsa ntawm qhov tsawg kawg nkaus ntawm 1 sensor rau 4 series cell, ntxiv rau cov kev sojntsuam ntxiv txuas rau lub zog MOSFETs thiab cov busbars loj.
Integrated firmware tsis tu ncua suav cov thermal gradients dT/dt. Yog tias qhov ntsuas kub hauv cheeb tsam ntawm qhov hloov pauv siab tshaj 1℃/ min, lub kaw lus ua rau muaj kev ntsuam xyuas kev ceeb toom ua ntej ncav cuag qhov tseeb tshaj - qhov kub thiab txias (55℃them / 60℃tawm).
Kev lag luam Standards & Impact ntawm LCOS
Xaiv ib qho kev lag luam -qib BMS ncaj qha hloov qhov project nyiaj txiag los ntawm kev nthuav tawm lub neej dhau los thiab txo kev siv nyiaj ua haujlwm (OpEx).
|
Parameter / Feature |
Standard Commercial BMS |
Advanced Industrial BMS Architecture |
|
Balancing Architecture |
Passive (50 mA - 100 mA) |
Active Bi-Kev taw qhia (2 A−5 A) |
|
Voltage Sensing raug |
± 10 mV |
± 2 mV |
|
Kev sib txuas lus raws tu qauv |
Basic RS485 |
Dual CAN npav / Modbus TCP / SNMP |
|
Fault Reaction Sijhawm |
<100 ms |
<2 ms (Hardware Interrupt) |
|
Thermal Sensing Ratio |
1 Probe rau 16 Cells |
1 Kev sojntsuam rau 4 Cells + Busbar Saib Xyuas |
|
Tsim lub neej voj voog |
3,000 Cycles (80% SOH) |
6,000-8,000 Cycles (80% SOH) |
LCOS Impact Analysis
Los ntawm kev tswj hwm qhov tsis sib xws ntawm tes hauv qab 10mV thoob plaws 8,000- lub neej voj voog, ib qho kev ua haujlwm - ntsuas BMS tiv thaiv txoj hlua kaw ntxov ntxov tshwm sim los ntawm cov kab hluav taws xob qis qis. Qhov peev xwm no txo qis Tus Nqi Them Nqi Them (LCOS) los ntawm:
· Usable Capacity Preservation:Tiv thaiv qhov "tsis muaj zog txuas" cuam tshuam, ua kom txoj hlua muaj peev xwm nyob ze rau qhov kev ntsuas nominal.
· Txo cov voj voog hloov:Nthuav tag nrho cov kev pab cuam lub neej tshaj 10 xyoo yam tsis tas yuav tsum tau nruab nrab - lub neej cell module hloov.
System Integration & Compatibility

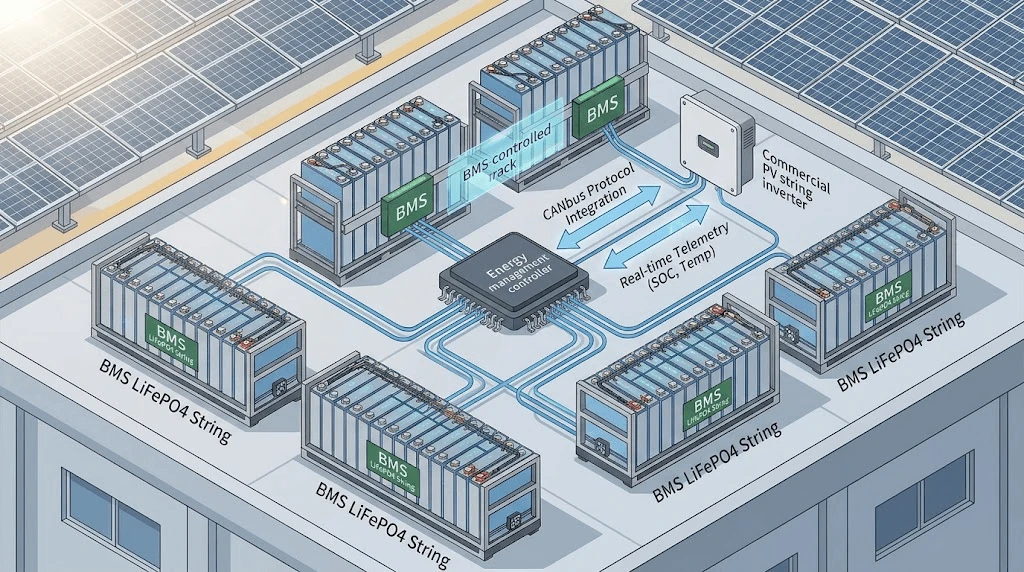

Kev ua raws li BMS yuav tsum sib cuam tshuam nrog cov tshuab hluav taws xob hloov pauv hluav taws xob (PCS) thiab cov tswj hwm hnub ci.
Thaum deploy coj mus muag kev daws teeb meem zoo li cov25.6V 100Ah Zog Cia Module, kev sib txuas lus kev lag luam nyob ntawm qis -latency CAN tsheb npav 2.0B thiab Modbus RTU raws tu qauv. BMS xa cov kev txwv kev ua haujlwm tsis zoo rau lub inverter hauv lub sijhawm:
Charge Current Limit (CCL):Dynamically kho raws li qhov siab tshaj plaws ntawm tes voltage thiab sab hauv kub.
Tshem Tawm Tam Sim No Limit (DCL):Kho raws li qhov tsawg kawg nkaus ntawm tes voltage, kub, thiab tam sim no SOC.
Qhov no kaw -loop kev sib txuas lus yuam lub inverter rau throttle tso zis ua ntej thermal lossis voltage txwv, tiv thaiv lub zog kaw nyob rau hauv hnyav load profiles.
Kev Tswj Xyuas Zoo & Kev Ua Raws Li Ntiaj Teb
Kev ruaj ntseg muaj kev ruaj ntseg yuav tsum tau ua raws li cov qauv ntsuas thoob ntiaj teb.
UL 1973:Cov qauv kev nyab xeeb rau cov roj teeb uas siv rau hauv daim ntawv thov nyob ruaj ruaj. Txheeb xyuas qhov kev ncaj ncees ntawm cov qauv, kev tiv thaiv ntawm tes, thiab kev nyab xeeb hluav taws xob nyob rau hauv qhov teeb meem txhaum cai.
IEC 62619 Ua raws:Mandates kev ntsuam xyuas kev nyab xeeb rau kev lag luam roj teeb lithium, suav nrog kev ntsuas thermal khiav tawm kev nthuav tawm thiab tswj chav tswj software kev kuaj xyuas kev nyab xeeb.
UN 38.3:Kev kuaj xyuas kev nyab xeeb, suav nrog qhov siab simulation, thermal shock, kev vibration, cuam tshuam, sab nraud luv luv, thiab yuam kev tawm.
Kev tswj hwm kev tsim khoom yuav tsum suav nrog qhov kawg automated - ntawm - kab (EOL) xeem. Txhua lub rooj tsavxwm BMS tau luv luv- kev pov thawj tiv thaiv Circuit Court, calibration checks nyob rau hauv tag nrho cov kev ntsuas raws, thiab hlawv - nyob rau hauv txias nyob rau hauv siab thermal tej yam kev mob (50 degree) ua ntej zaum kawg sib dhos.
FAQ
1. Yuav ua li cas BMS tiv thaiv thermal runaway propagation nyob rau hauv luv luv -circuit tej yam kev mob?
BMS siv ob-tier tiv thaiv lub tswv yim: thawj luv luv- cov khoom siv hluav taws xob cuam tshuam cuam tshuam ua rau ultra-fast solid-state switch/MOSFET disconnections nyob rau hauv <100 microseconds thaum tam sim no qhov pib ua txhaum cai. Yog tias koj siv lub tshuab hluav taws xob relay lossis contactor topology, ultra-cov khoom siv hluav taws xob nrawm nrawm muab kev cais tawm ntawm lub cev. Tsis tas li ntawd, lub firmware tswj xyuas dT / dt vectors txhawm rau txheeb xyuas qhov luv luv ua ntej cov pa cua los yog thermal nthuav tawm tshwm sim.
2. Dab tsi yog qhov yuav tsum tau muaj logistics thiab kev nyab xeeb rau kev xa khoom siab -LiFePO4 pob khoom txawv teb chaws?
Txhua pob khoom yuav tsum tau lees paub raws li UN 38.3 cov cai thiab xa tawm ntawm Lub Xeev Tus Nqi (SOC) ntawm 30% thiab 50%. Cov pob khoom yuav tsum muaj UN- ntawv pov thawj ntim khoom txaus ntshai (Class 9 cov khoom txaus ntshai) uas muaj cov khoom siv hluav taws xob ntxiv, luv luv - tiv thaiv Circuit Court terminal, thiab noo noo- kaw sab hauv qhwv. BMS yuav tsum tau teeb tsa rau qhov qis -lub zog "Deep Sleep Mode" thaum lub sijhawm thauj mus los txhawm rau txwv tus kheej - tso tawm mus rau <0.5% ib hlis.
3. Dab tsi yog thaj tsam rau kev cai OEM / ODM BMS firmware hloov kho rau cov txheej txheem inverter tshwj xeeb?
Customization ciam teb suav nrog kev hloov kho ntawm CANbus / RS485 thav duab cov qauv, daim ntawv qhia kev cai Modbus sau npe chaw nyob, kho dynamic SOC / SOH xam algorithms, thiab configuring kev cai kub / voltage mus txawv tebchaws curves. Cov kev hloov kho lub cev tso cai rau kev xaiv ntawm cov khoom siv -xeev MOSFET hloov lossis lwm tus neeg tiv tauj tus neeg tsav tsheb circuits raws li qhov system voltage txwv (txog 1000 VDC. Standard engineering turnaround rau firmware raws tu qauv adaptations feem ntau yog 2 mus rau 3 lub lis piam.
