PKhoom Parameter (Specification)
|
Specification |
Paub meej |
|
System Hom |
Hauv - daim phiaj (tsis muaj roj teeb) |
|
Qhov Loj |
3 kW |
|
Qhov nruab nrab txhua hnub Fais fab tso zis |
12-15 kWh |
|
Solar vaj huam sib luag Efficiency |
18–22% |
|
Inverter Efficiency |
95–98% |
|
Yuav tsum tau qhov chaw |
200–250 sq. ft. ntxoov ntxoo- thaj chaw dawb |
|
Number of Panels |
8-10 (330W-375W txhua) |
|
Inverter Ntxiv |
MPPT, app/Wi-Fi tracking, pib daim phiaj sync |
Khoom Feature thiab Daim Ntawv Thov
Txiav koj cov nqi hluav taws xob
Nws khiav ntawm hnub ci dawb los txiav koj lub hwj chim txhua hli raug nqi loj, thiab ib qho hluav taws xob ntxiv uas koj ua rov qab mus rau daim phiaj rau daim nqi qiv nyiaj - nyiaj txuag dawb, tsis muaj haujlwm ntxiv.
01
Tsim kom kav ntev xyoo
Lub hnub ci vaj huam sib luag kav ntev li 25+ xyoo, yog li koj yuav tsis tau hloov lawv sai sai. Lawv tuav tau zoo nyob rau hauv ib txwm huab cua, tsis muaj kev saib xyuas zoo.
02
NW nyuam qhuav muaj kev tu
Tsuas yog so cov panels cia txhua txhua tam sim no thiab tom qab ntawd thiab ceev cov tshev yooj yim. Tsis muaj kev kho nyuaj, tsis muaj nqi ntau xyoo.
03
Huv si, Ua kom muaj zog
Nws hloov lub hnub ci mus rau hauv lub zog tiag tiag (18-22% kev ua haujlwm), ua rau tsis muaj kev cuam tshuam emissions, thiab pab koj mus ntsuab yam tsis muaj kev siv zog ntxiv.
04
KhoomCov ntawv pov thawj
CE, IEC 61215, IEC 61730 tau ntawv pov thawj
Ua raws li EN 50549, VDE 0126
UL 1741, IEEE 1547 tau teev tseg
JET, JIS tau ntawv pov thawj rau Nyiv kev lag luam
IP65 waterproof & tiv thaiv -Islanding tiv thaiv
Tsawg THD<5%, stable grid connection
Xa thiab Pab
Lub sij hawm xa tuaj
|
Ntim (units) |
1-20 |
＞20 |
|
Lub sij hawm xa tuaj (hnub) |
7 |
Sib tham tau |

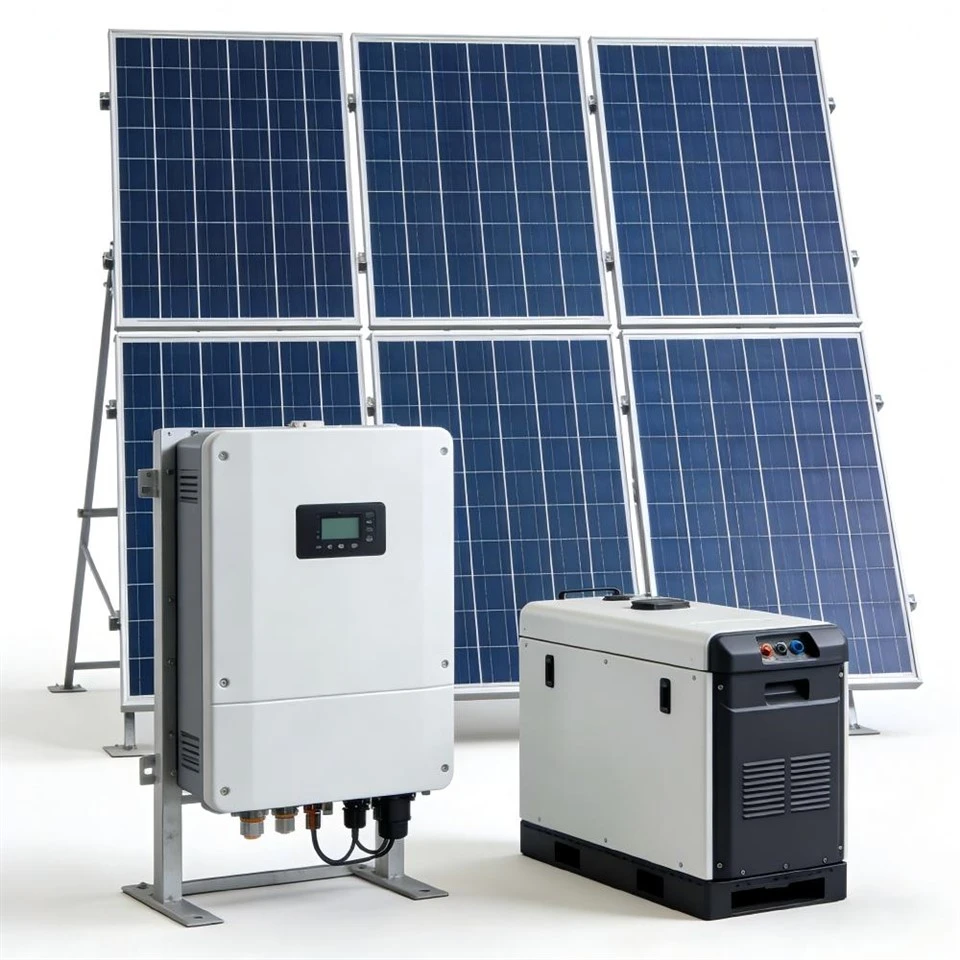

Product Overview
Yog tias koj xav tau ib qho yooj yim, tsis muaj - teeb hnub ci teeb meem rau koj tsev neeg lub tsev lossis lub khw hauv zos me, qhov 3kW ntawm - kab sib chaws yog ib qho kev xaiv nrov tshaj plaws rau cov neeg niaj hnub. Nws ntsaws ncaj nraim rau hauv koj daim phiaj hluav taws xob hauv zos - tsis muaj roj teeb hnyav, kim yuav, yog li koj tsis txhob nkim nyiaj rau cov iav ntxiv uas koj tsis xav tau. Nyob rau hnub tshav ntuj tsis tu ncua, nws ua rau li 12 mus rau 15 kWh ntawm hluav taws xob huv, uas yooj yim npog koj txhua hnub: teeb, tub yees, TV, thiab cov khoom siv hauv chav ua noj me me. Koj tsuas yog xav tau 200 mus rau 250 square feet ntawm lub ru tsev qhov chaw uas tsis muaj qhov ntxoov ntxoo txhua hnub, yog li nws haum rau feem ntau cov qauv ru tsev yam tsis muaj chav ntxiv. Nws yog qhov pheej yig, qis-txoj kev tu kom txiav koj cov nqi hluav taws xob txhua lub hlis, yam tsis muaj teeb meem nyuaj lossis kho.
FAQ
Q: Qhov no puas yuav ua haujlwm thaum lub zog tawm?
A: Tsis yog, qhov no yog ib qho ntawm - kab sib chaws. Nws kaw tsis siv neeg thaum tsaus ntuj rau kev nyab xeeb, yog li nws yuav tsis khiav koj lub tsev thaum daim phiaj poob qis.
Q: Kuv xav tau qhov chaw ru tsev ntau npaum li cas?
A: Koj xav tau 200 mus rau 250 square feet ntawm qhov chaw uas tau txais lub hnub puv hnub feem ntau - tsis muaj ntoo, tsev, lossis ib yam dab tsi thaiv lub teeb.
Q: Muaj pes tsawg panels tuaj nrog qhov system no?
A: Feem ntau 8 mus rau 10 siab- cov vaj huam sib luag ua tau zoo, txhua 330W txog 375W, npaj kom haum rau feem ntau lub ru tsev yooj yim.
