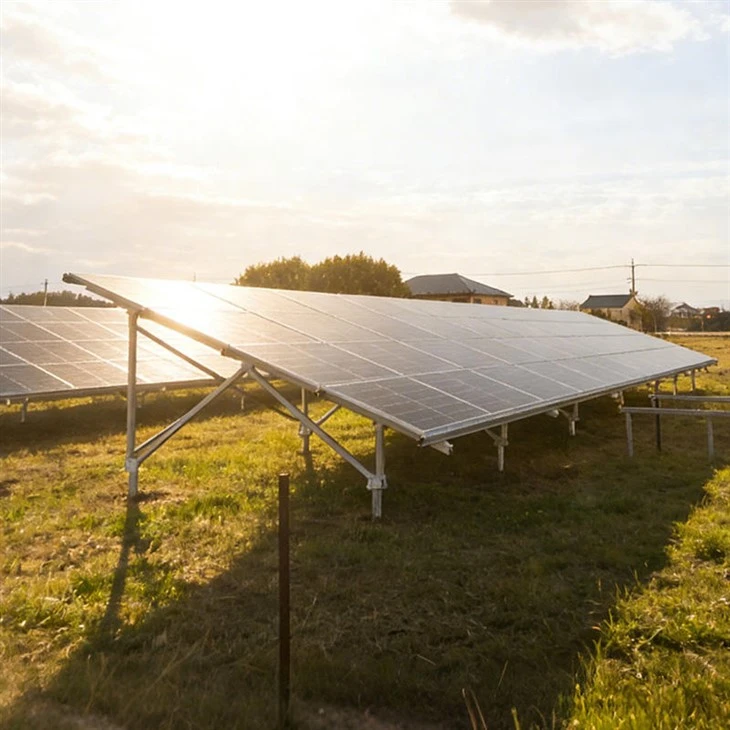

Product Overview & System Integration
Qhov kev lag luam no -qib Ground Mounting System rau Hnub Ci Vaj Huam Sib Luag yog tsim los rau kev siv hluav taws xob- nplai hnub ci ua liaj ua teb thiab daim phiaj ua lag luam- khi cov haujlwm. Tsim los nrog siab -tensile AL6005-T5 extruded aluminium, tus qauv racking muab cov txheej txheem ruaj khov thaum tuav qhov hnyav kom ceev ceev ntawm - qhov chaw sib dhos. Lub kaw lus txhawb nqa ntau- kab teeb tsa thiab hloov mus rau cov toj roob hauv pes mus txog 20 degrees. Cov kws ua choj tuaj yeem qhia cov hom hauv paus-hauv av screws rau cov qauv av lossis cov pob zeb ua pob zeb rau cov pob zeb. Raws li ib tug ncaj qha Tuam Tshoj tus neeg muag khoom thiab cov chaw tsim khoom, peb muab kev sib sib zog nqus OEM kev koom ua ke, suav nrog cov kaum ntse ntse tshwj xeeb (10℃txog 60 degree), kev cai bracket ntev, thiab cov qauv kev suav raws li cov ntaub ntawv hauv cheeb tsam cua thiab daus.
Khoom siv & Technical Specifications
|
Qhov Chaw Keeb Kwm |
Tuam Tshoj |
|
Daus Load |
1.4KN / M2 (29.24psf) ceev |
|
Daim ntawv thov |
Hauv av |
|
Max Snow Load |
1.4 hli / m2 |
|
Siv tau Module |
Framed los yog Frameless |
|
Lo lus tseem ceeb |
mount solar system, PV mount hnub ci hauv av system |
|
Cua Load |
60M/S (196.85ft/s) |
|
Khoom npe |
Hnub ci av Mounting System |
|
Daim ntawv pov thawj |
CE/IS09001 |
|
Max Cua Ceev |
216km/h =60m/s |
|
Module Orientation |
Portrait los yog toj roob hauv pes |
|
Warranty |
10-xyoo warranty, 25-xyoo kev pab cuam lub neej |
Kev Tswj Xyuas Zoo & Cov Qauv Ntiaj Teb
Txhua qhov kev txiav txim lag luam wholesale yuav tsum nruj me ntsis metallurgical thiab mechanical test ua ntej xa. Peb lub Hoobkas ua tiav 100% kev tshuaj xyuas cov khoom siv raw khoom rau AL6005-T5 blocks, txheeb xyuas cov khoom muaj zog thiab cov kev txwv tensile. Nto anodization raug txheeb xyuas los ntawm kev ntsuas ntsev pos huab corrosion kom ntseeg tau tias kev ua haujlwm hauv C4 ntug dej hiav txwv ib puag ncig. Cov racking hauv av ua raws li AS / NZS 1170 thiab JIS C 8955 cov qauv qauv. Fasteners undergo torque limit tests, thiab pre-assembled qhov chaw yog randomly sampled rau cov qauv haum xyuas kom paub tseeb tias xoom alignment defects ntawm qhov project site.
Ntim & Logistics Safety
Racking Cheebtsam yog ntim rau siab - ntim export thiab ntim ceev ceev. Extruded aluminium rails thiab kab teeb yog bundled siv cov ntawv tsis muaj dej tsis sib haum thiab ntxiv dag zog nrog hnyav - lub luag haujlwm steel strapping. Cov khoom sib txuas, clamps, thiab SUS304 fasteners raug kaw hauv cov dej noo-cov ntaub ntawv pov thawj poly hnab thiab ntim rau hauv cov thawv tawv tawv corrugated. Tag nrho cov ntaub ntawv raug muab sib sau ua ke rau hauv cov cua sov- kho ISPM-15 ntoo pallets lossis steel pallets kev cai, tso cai rau stackability thiab tiv thaiv deformation thaum lub caij hla dej hiav txwv. Qhov no ua rau 40HQ ntim qhov chaw thiab txo tus nqi thauj khoom rau B2B cov neeg yuav khoom ntau.
Hom Daim Ntawv Thov Scenarios
Hom Daim Ntawv Thov Scenarios
Xaiv txoj kev npaj uas haum koj tshaj plaws.
Utility-Sale Solar Farms
High-cov qauv tshem tawm rau megawatts hauv av-mounted PV modules.
01
Agricultural Solar Racking
Cov elevated arrays cia cov qoob loo loj hlob los yog tsiaj txhu grazing hauv qab.
02
Kev lag luam tawm -Grid Installations
Tej thaj chaw deb xov tooj chaw nres tsheb los yog suab puam chaw yuav tsum tau sib sib zog nqus ntsia hlau foundations.
03
Industrial Plant Surrounds
Siv lub Hoobkas tsis siv cov av rau hauv ib cheeb tsam hauv kab hluav taws xob- khi fais fab.
04
FAQ
Cov av no ua li cas -mounted system hloov mus rau qhov tsis sib xws lossis qhov chaw siab tshaj?
Adjustable puag daim hlau thiab sib txawv ceg ntev kom haum rau qhov chaw tsis sib xws thiab qhov chaw siab tshaj 20 degrees. Lub kaw lus siv qhov hloov pauv hloov pauv cov pob qij txha uas sib haum nrog hauv av contours, tshem tawm qhov xav tau ntawm cov av kim ua ntej kev teeb tsa.
Dab tsi tiv thaiv kev txhim kho corrosion nyob rau hauv 25-xyoo tsim lub neej?
Peb nruj me ntsis siv AL6005-T5 txhuas nrog qhov tsawg kawg nkaus 12μm anodized txheej nrog SUS304 stainless hlau kho vajtse. Qhov kev sib xyaw ua ke no tiv thaiv galvanic corrosion ntawm cov hlau tsis sib xws thiab tiv thaiv kev puas tsuaj nyob rau hauv siab - av noo los yog ntsev-mist ntug dej hiav txwv ib puag ncig.
Lub Hoobkas ua lub sijhawm rau 5MW kev lag luam wholesale yog dab tsi?
Standard 5MW hauv av mounting system xaj yuav tsum tau 14 mus rau 21 hnub rau kev tsim khoom thiab ntim khoom. Yog tias qhov project xav tau kev kho pwm tshwj xeeb rau kev cai rail profiles lossis hauv av ntsia hlau ntev, cia siab tias yuav ntxiv 7 hnub rau kev siv cov cuab yeej siv tau.
Hu rau Action
Xa koj cov qauv kev cai kom tau txais cov txheej txheem suav nrog thiab cov phiaj xwm lag luam wholesale hauv 24 teev. Hu rau peb cov chaw tsim khoom Tuam Tshoj ncaj qha rau tus nqi ntau thiab thov OEM bracket qauv rau ntawm - qhov chaw kuaj xyuas.
