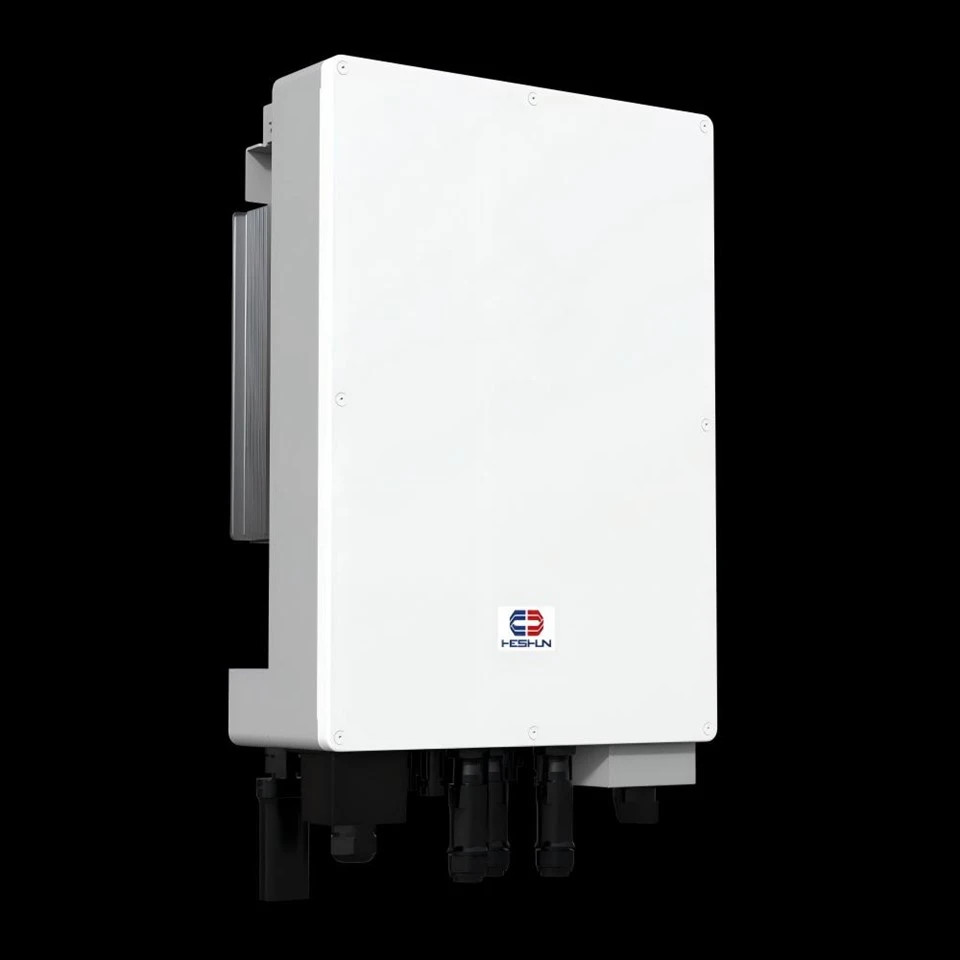

Pure Wave OnGrid Inverter Chaw tsim tshuaj paus|Lag luam wholesale Hoobkas
Yuav lag luam wholesale ntshiab yoj ongrid ntawm -griders ncaj qha los ntawm Tuam Tshoj Hoobkas. 98.4% max efficiency, dual MPPT khiav, 5-xyoo warranty. Tsawg MOQ. Tau txais ib nqe lus.
Product Overview & System Integration
Lub Hemao ntshiab nthwv dej ntawm -grid inverter transforms ncaj qha tam sim no los ntawm photovoltaic hlua arrays mus rau ruaj khov utility-synchronous ntshiab sine yoj alternating tam sim no. Kev tsim kho rau kab hluav taws xob- khi kev lag luam ru tsev thiab khoom siv hluav taws xob- teev hnub ci kev teeb tsa, lub zog hluav taws xob no sib txuas nrog cov khoom siv hluav taws xob hauv zos thoob plaws ntiaj teb kev teeb tsa (220V / 380V, 230V / 400V). Ob txoj kev ywj pheej MPPT tswj cov hlua asymmetrical voltages tshwm sim los ntawm ib nrab shading los yog txawv azimuth layouts. Raws li lub tuam txhab tsim Tuam Tshoj qhov chaw tsim khoom, Xiamen Hemao Kev Lag Luam muab cov khoom siv kho vajtse thiab kev hloov kho firmware. Qhov no suav nrog cov kab sib chaws hauv zos-kev ua raws cai (VDE-AR-N 4105, EN 50549-1, AS4777.2), PCB topology optimization rau high-voltage DC paths, thiab kev sib xyaw RS485/WiFis interface/
Khoom siv & Technical Specifications
|
Technical Parameter |
Specification Tus Nqi / Kev Txwv Kev Ua Haujlwm |
|
Tso zis Waveform |
Pure Sine Wave (THD<3% linear load) |
|
Kev ua tau zoo tshaj plaws |
98.4% (Euro Efficiency 98.0%) |
|
Maximum DC Input Voltage |
1100V |
|
MPPT Voltage Ntau |
200V - 1000V |
|
Tus naj npawb ntawm MPPT Trackers / Strings |
2 / 2 |
|
Qhov siab tshaj tawm tam sim no rau MPPT |
15A / 15A |
|
Nominal AC tso zis zog |
10kW / 15kW / 20kW xaiv |
|
Nominal Grid Voltage / Ntau |
3/N/PE, 230V/400V (310V - 480V) |
|
Grid Zaus Range |
50Hz / 60Hz (± 5Hz qhov rais) |
|
Fais Fab Kev Kho Kom Zoo Ntau Yam |
0.8 ua rau 0.8 lagging |
|
DC Rov qab Polarity Protection |
Kev koom ua ke |
|
AC luv Circuit Court tiv thaiv |
Kev koom ua ke |
|
Tshaj -Voltage Protection (OVP) |
Hom II DC & Hom II AC Surge Protection |
|
Cov ntaub ntawv pov thawj / IP ntsuas |
Tuag-Aluminium Alloy / IP65 |
|
Txoj kev txias |
Natural Convection / Passive Sab Nraud Kub Dej |
|
Kev khiav hauj lwm qhov kub thiab txias |
-25℃txog 60℃(derating saum 45 degree) |
|
Ua haujlwm siab tshaj plaws |
4,000 m |
Kev Tswj Xyuas Zoo & Cov Qauv Ntiaj Teb
Xiamen Hemao Kev Lag Luam siv cov txheej txheem tshawb xyuas kev ua tau zoo hauv peb cov chaw tsim khoom. Txhua nthwv dej ntshiab ntawm -grid inverter hla ntau-theem automated optical inspections (AOI) thiab tivthaiv- theem kev txheeb xyuas qhov hluav taws xob. Cov rooj sib txoos ua ke tau raug kaw 48-teev siab-kub puv-load hlawv- nyob rau hauv lub voj voog kom tshem tawm cov khoom me me tuag. Peb cov txheej txheem tsim ua raws li ISO9001 thiab ISO14001 cov txheej txheem. Txhua qhov kev xa khoom xa tuaj nrog cov ntawv dawb dawb- lub thawv kuaj cov ntaub ntawv, ntawv pov thawj ua raws li CE cov lus qhia, IEC 62109-1/-2 txoj cai kev nyab xeeb, IEC 61000 electromagnetic compatibility cov cai, thiab cheeb tsam tshwj xeeb tiv thaiv-islanding.certification parameter
Ntim & Logistics Safety
Photovoltaic inverters muaj cov hlau nplaum hnyav thiab zoo li qub - hluav taws xob hluav taws xob xav tau tshwj xeeb kev tiv thaiv. Hemao siv export- qib ntim uas muaj daim ntawv - haum anti- zoo li qub polyethylene ua npuas ncauj blocks uas encapsulate tag nrho inverter ncej. Thawj lub chassis yog muab tso rau hauv ib qho ntxiv ob npaug -phab ntsa corrugated shipping master carton. Rau cov lag luam wholesale ntau-unit logistics, cartons systematically stacked on ISPM{10}}15 compliant fumigated wood pallets, qhwv nrog hnyav-gauge puncture-resistant stretch film, thiab khi nruj nreem los ntawm multi-point PET structural kab rov tav thiab ntsug txoj hlua kom ruaj ntseg.
Hom Daim Ntawv Thov Scenarios
Commercial Rooftop Arrays:Muab khi rau hauv cov kab sib chaws hauv cheeb tsam rau kev lag luam siab tshaj load shedding thiab ua hauj lwm emission txo.
Loj -scale Solar Irrigation:Tsav cov chaw nres tsheb hauv nruab nrab ntawm AC txuas ncaj qha nrog kev faib tawm hauv cheeb tsam micro- daim phiaj.
Public Infrastructure Installations:Siab -Kev ntseeg tau lub zog txhaj tshuaj rau hauv cov tsev kawm ntawv hauv nroog, tsev kho mob, thiab EV charging chaw nres tsheb qhov chaw faib khoom loj.
FAQ
Q: Qhov no ntshiab yoj ongrid inverter yuav ua li cas ua raws li cov cheeb tsam sib txawv los tiv thaiv -islanding kev ruaj ntseg chaws?
A: Internal micro-coon-gridntroller yog flashed ntawm lub Hoobkas theem nrog txawv firmware matrices uas muaj nyob rau hauv cheeb tsam tsis (xws li IEEE 1547 los yog kab sib chaws- tshwj xeeb qhov pib). Cov nquag nquag thiab nquag-hloov algorithms saib xyuas cov kab sib txawv, ua rau muaj kev sib cais tsis pub dhau 100 milliseconds yog tias hluav taws xob poob qis.
Q: Dab tsi yog qhov tseeb linear conversion efficiency nplua thaum ua hauj lwm ntawm qhov kub siab tshaj - qhov pib kub?
A: Lub tshuab ua kom txias txias tswj tau 100% cov zis tawm mus txog 45℃ambient cua kub. Saum toj no, ib qho thermal sensor nrog cov kab hluav taws xob ua rau txo qis IGBT degradation, txo cov zis los ntawm kwv yees li 1.5% ib℃Celsius mus txog 60℃kev txwv.
Q: Dab tsi yog qhov tsawg kawg nkaus lub Hoobkas xaj ntim thiab lub sijhawm ua haujlwm rau kev sib xyaw ua ke xoom-export firmware mod?
A: Kev hloov kho lub voj voog tswj firmware rau kev sib cuam tshuam nrog cov ntsuas ntsuas hauv zos rau xoom xoom-export daim phiaj ua raws yuav tsum muaj MOQ ntawm 20 units. Thaum cov txheej txheem ntsuas ntsuas tshwj xeeb raug txheeb xyuas los ntawm peb lub rooj engineering, kev hloov kho code thiab kev sib koom ua ke ntawm lub cev xav tau 14 hnub ua haujlwm.
Cim npe nrov: Tuam Tshoj ntshiab yoj ongrid inverter manufacturers, lwm tus neeg, Hoobkas
