1. Kev Taw Qhia: Kev txo qis kev ua haujlwm tsis zoo ntawm qhov siab - Cua Solar Deployments
Ntiaj teb no EPC cov neeg cog lus siv cov khoom siv hluav taws xob photovoltaic nyob rau hauv typhoon- cov cheeb tsam nyob hauv ntug dej hiav txwv ntsib cov teeb meem tseem ceeb hauv engineering. Standard ru tsev racking feem ntau ua tsis tau tejyam thaum nyob rau hauv lub cheeb tsam loj uplift rog thiab tsis zoo siab zones generated los ntawm siab - cua turbulence. Kev hloov pauv ntawm cov qauv, cov hlua khi hlua khi, thiab cov tsheb ciav hlau buckling tsis tsuas yog ua rau muaj kev puas tsuaj loj tab sis kuj qhia txog kev lav phib xaub hnyav thiab lub sijhawm ua haujlwm ntev.
Cov lus qhia no qhia txog cov txheej txheem kev siv tau zoo, cov qauv kev ua kom zoo aerodynamic, thiab cov kev qhia tshwj xeeb uas yuav tsum tau ua kom ruaj ntseg pitched ru tsev hnub ci mounts tiv thaiv Qeb 5 typhoon tej yam kev mob. Los ntawm kev siv cua-tunnel- sim cov qauv tsim thiab cov txheej txheem nruj, cov pab pawg ua haujlwm tuaj yeem tiv thaiv qhov sib npaug ntawm - ntawm - system (BOS) kev ncaj ncees thaum tiv thaiv ntev - lub sijhawm ua haujlwm yields.
2. Kev Tshawb Fawb Txog Kev Tshawb Fawb & Cov Txheej Txheem Txheej Txheem

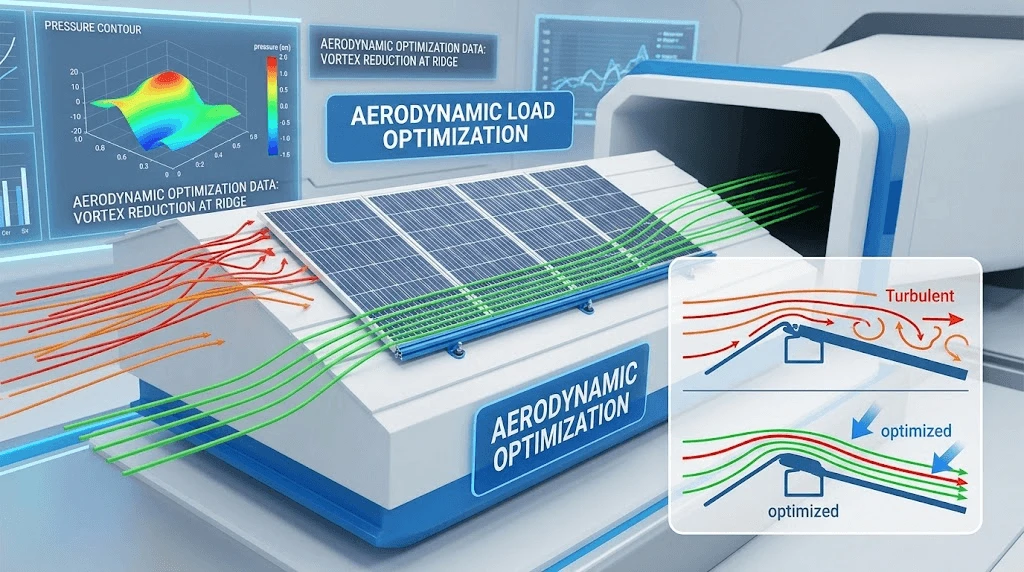

Aerodynamic Load Optimization
Pitched ru tsev ua raws li aerodynamic ramps, ceev cua tshaj tawm thoob plaws lub voj voog thiab tsim kom muaj kev nqus dej siab nyob ntawm lub ru tsev eaves thiab fab. Standard flat-plate assumptions yog tsis txaus rau coj mus muag-scale structural qauv. High-kev ua tau zoo pitched ru tsev mounts siv tsawg-cov duab geometries thiab optimized qaij lub kaum sab xis (feem ntau txuam los yog tuav ze rau lub ru tsev suab) kom txo tau cov npuas sib cais thiab vortex shedding. Computational Fluid Dynamics (CFD) qauv ua ke nrog ciam teb txheej cua qhov kev sim xyuas kom meej tias cov coefficients siab (Cp) raug txo kom tsawg thoob plaws txhua lub ru tsev, dampening oscillatory flutter ntawm lub module nto.

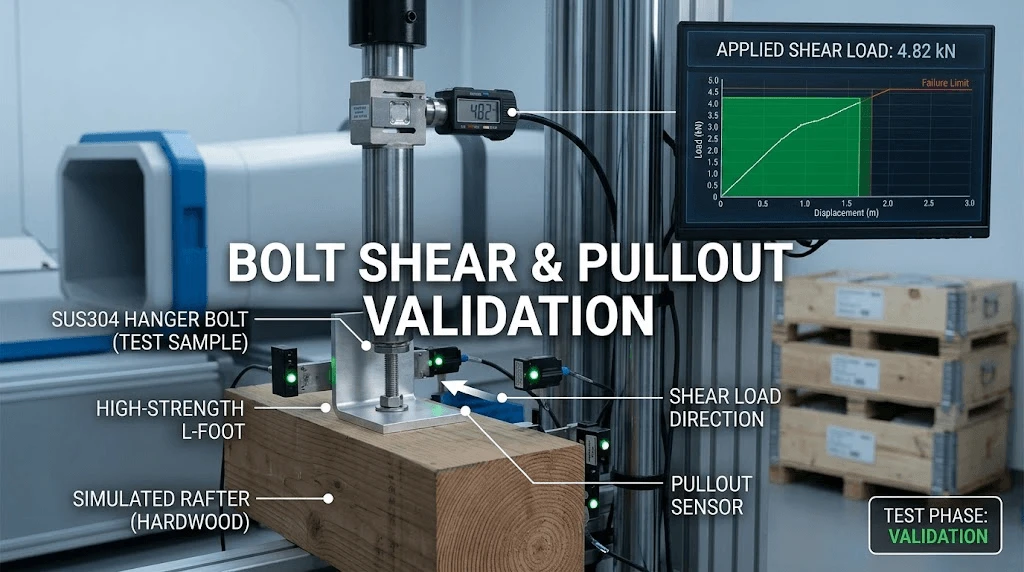

Bolt Shear Resistance & Structural Load Paths
Txoj kev thauj khoom siv tshuab hloov cua-induced uplift thiab drag force ncaj qha los ntawm PV module thav duab los ntawm nruab nrab/kawg clamps, mounting rails, hanger bolts los yog ru tsev hooks, thiab mus rau hauv thawj ntoo los yog pob zeb rafters. Txhawm rau tiv thaiv kev rub tawm thiab txiav tsis ua haujlwm nyob rau hauv cyclic loading:

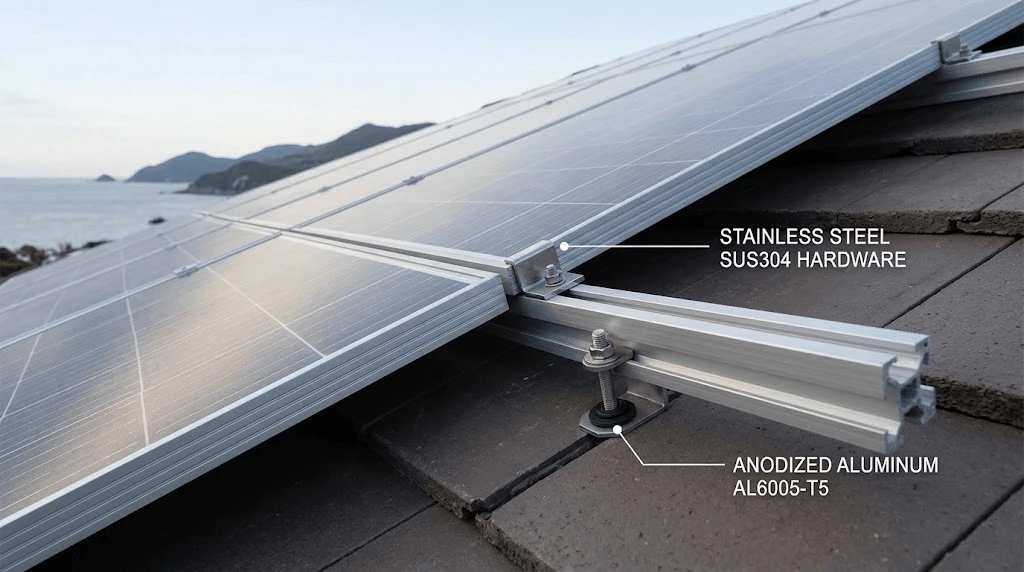

Khoom Specifications:Fasteners yuav tsum tau fabricated los ntawm 304 los yog 316 cov yam ntxwv stainless hlau, tiv taus siab shear stresses tsis nkig puas.
Torque Calibration:Clamps yuav tsum tau calibrated torque daim ntawv thov (feem ntau 14-16 Nm rau M8 stainless hardware) kom tswj tau raws li clamping siab tsis crushing aluminium module ncej.
Penetration Sealing:Rau kev nkag mus- hom mounts, EPDM flashing dab tshos lossis cov khoom siv compression ntsaws ruaj ruaj tiv thaiv cov dej nkag thaum faib cov ntsiab lus thauj khoom sib npaug ntawm cov tswv cuab ntawm cov txheej txheem.
3. Cov qauv kev lag luam & ROI cuam tshuam
Cov Qauv Ua Raws Cai
|
Parameter |
Txheem Specification |
Engineering Impact |
|
Tsim Cua Ceev |
Mus txog 65m / s (Qeb 4-5 Typhoons) |
Tiv thaiv cov txheej txheem tsim kua muag raws li qhov siab tshaj plaws. |
|
Cua Tunnel Standard |
AS/NZS 1170.2 / ASCE 7-16 / EN 1991-1-4 |
Validates lub zog coefficients hauv zos rau qhov sib txawv ntawm lub ru tsev geometry. |
|
Khoom siv |
Anodized Aluminium AL6005-T5 & SUS304 |
Ua kom lub zog tsawg kawg nkaus ntawm 225MPa tiv thaiv kev qaug zog. |
|
Safety Factor |
Ntau tshaj los yog sib npaug rau 1.5 tiv thaiv qhov kev txwv tsis pub dhau |
Muab structural buffer tiv thaiv unpredictable turbulence. |
ROI cuam tshuam & LCOE txo
Cov txheej txheem tsis ua haujlwm thaum muaj xwm txheej huab cua hnyav yuav tsum tau hloov cov khoom siv nyiaj txiag, kev tuav pov hwm tus nqi spikes, thiab kev ncua sijhawm txuas ntxiv. Kev siv cov typhoon sim nruj heev- ntsuas lub ru tsev mounts tshem tawm cov txheej txheem kho cov kev siv nyiaj tshaj tus qauv 25- xyoo ua haujlwm lub neej. Kev tswj xyuas cov neeg kho tshuab rigidity ncaj qha tiv thaiv cov kab hluav taws xob hluav taws xob los ntawm kev tiv thaiv micro-cracks hauv silicon wafers tshwm sim los ntawm thav duab twisting thaum lub sij hawm cua kub, kom ntseeg tau tias optimized levelized nqi zog (LCOE) kev ua tau zoo.
4. Kev sib xyaw ua ke & kev sib haum xeeb
Kev ntseeg siab cua load kev ua tau zoo yuav tsum nruj kho vajtse synchronization hla tag nrho cov khoom vaj khoom tsev hnub ci. Hemao Kev Lag Luam mounting architectures sib xyaw ua ke nrog cov qauv kev lag luam framed panels thiab lub zog cia enclosures los ntawm kev siv universal rail raws uas haum rau txawv module thicknesses (30mm mus rau 40mm).
Los ntawm kev sib koom ua ke siab - cua pitched ru tsev rails nrog lub teeb yuag mounting taw thiab integrated grounding lugs, installation crews tuav txuas txuas hluav taws xob sib txuas txoj hauv kev yam tsis tas yuav tsum tau cais tooj liab grounding jumpers. Qhov kev sib txuas lus tus qauv no txo tus txiv neej kev teeb tsa- teev los ntawm 18% thaum lav tias cov khoom thauj khoom thauj khoom tseem nyob ib puag ncig ntawm ob lub ru tsev hlau thiab cov nplais - thiab - batten configurations.
5. Kev Tswj Xyuas Zoo & Kev Ua Raws Li Ntiaj Teb
Kev tswj hwm nruj ntawm lub Hoobkas yog qhov yuav tsum tau ua ua ntej cov khoom siv kho vajtse mus txog qhov chaw ua haujlwm ntawm ntug dej hiav txwv. Hemao Kev Lag Luam tswj hwm ntau-tier kev lees paub zoo raws tu qauv:
Raw Khoom Spectrometry:Txheeb xyuas cov ntsiab lus tseem ceeb ntawm AL6005-T5 extrusion kom ntseeg tau tias tensile thiab yield zog ua raws.
Kev ntsuam xyuas Anodic Oxide Thickness:Xyuas kom muaj oxide txheej thickness ntau dua los yog sib npaug li 15um rau ntsev -Txaus corrosion kuj nyob rau hauv marine thiab ntug dej hiav txwv ib puag ncig.
Mechanical Load Testing:Kev puas tsuaj thiab tsis yog -kev puas tsuaj load cell kuaj ntawm cov tsheb ciav hlau sib sau ua ke-clamp cov qauv los xyuas qhov kawg tensile lub zog margins.
Cov ntawv pov thawj thoob ntiaj teb:Tag nrho cov ntaub ntawv ua raws li TUV Rheinland, ISO 9001, thiab AS/NZS 1170.2 tus qauv.
6. FAQ
Yuav ua li cas pitched ru tsev mounting systems tswj kev ncaj ncees nyob rau hauv siab - salinity typhoon tej yam kev mob?
Cov kab ke ua ke marine-qib AL6005-T5 txhuas nrog passivated SUS304 stainless hlau kho vajtse los tiv thaiv galvanic corrosion. Kev tiv thaiv anodization txheej kaw cov hlau substrate tiv thaiv cov tshuaj tsuag ntsev infiltration, kom ntseeg tau tias cov qauv kev ncaj ncees tseem tsis muaj kev cuam tshuam txawm tias tom qab raug cuam tshuam rau cov av noo ntawm ntug dej hiav txwv thiab siab -ceev cua-tsav los nag.
Kev ntim khoom thiab kev thauj khoom dab tsi yog siv rau kev xa khoom thoob ntiaj teb ntau ntawm hnyav- lub luag haujlwm mounting rails?
Kev xa khoom ntau yog muab tso rau hauv cov ntoo crates lossis steel-banded palletized bundles sib cais los ntawm tsis yog-abrasive foam interleaves. Cov kab ciav hlau raug kaw kom nruj kom txo qis kev hloov pauv, thiab tag nrho cov fasteners tau ua ntej - tau muab tso rau hauv lub hnab ntim dej kom nrawm nrawm rau ntawm - qhov chaw pib thiab tiv thaiv cov khoom poob thaum tuav cov chaw nres nkoj.
Dab tsi yog thaj tsam kev kawm thiab lub sijhawm ua haujlwm rau kev cai OEM / ODM cua -load engineered mounting kev daws teeb meem?
Custom engineering for non-standard roof pitches or extreme wind zones (>70m / s) suav nrog kev tsom xam CFD thiab cov qauv tsim qauv. Cov ntaub ntawv qhia txog kev sim ua ntej pib raug xa tawm hauv 5 hnub ua haujlwm, nrog rau tag nrho cov khoom tsim thiab cov cuab yeej kos npe - tawm ua tiav nyob rau hauv 3 mus rau 4-lub lim tiam qhov rais nyob ntawm qhov project scale.
