Lag luam wholesale 12V 50Ah LiFePO4 roj teeb rau hnub ci & RV|Tuam Tshoj Hoobkas
Tau qhov twg los 12V 50Ah LiFePO4 roj teeb rau hnub ci & RV los ntawm Tuam Tshoj chaw tsim khoom. 640Wh, 3500+ cycles, ua -hauv BMS, qis MOQ. Thov OEM qhov project quote.
Product Overview & System Integration

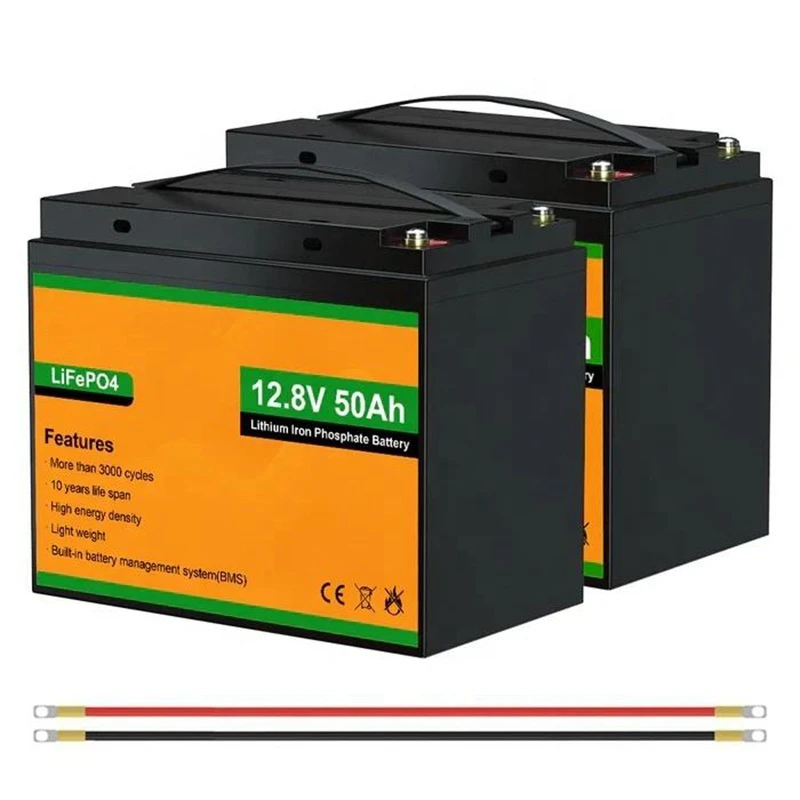

Lub Hemao 12V 50Ah LiFePO4 Roj teeb rau Hnub Ci & RV muab lub zog ruaj khov 640Wh nominal zog cia nyob rau hauv tus qauv poob-hauv kev hloov hneev taw rau cov thawv roj teeb SLA. Engineered tshwj xeeb tshaj yog rau mobile off-daim phiaj hluav taws xob daim phiaj thiab thaj chaw hnub ci cia lub voj voog, qhov no lithium hlau phosphate module nta siab vibration kam rau tiv thaiv tawm- txoj kev RV. Cov khoom siv sab hauv kev sib xyaw ua kom muaj kev sib txuas thiab sib luag, tso cai rau cov neeg sib koom ua ke kom ntsuas qhov chaw khaws cia txog li 48V lossis 200Ah nrog xoom sab nraud qhov hluav taws xob thaiv. Peb lub Hoobkas tswj hwm kev hloov kho kho vajtse tag nrho, muab kev txiav txim siab PCB them nyiaj txiav -offs, kev cai ntev cov hlua khi, thiab kev txhaj tshuaj tshwj xeeb-cov xim casing rau cov khoom lag luam thoob ntiaj teb cov ntawv cog lus.
Total Rated Zog=12.8V*50Ah=640Wh
Khoom siv & Technical Specifications
|
Technical Parameter |
Cov ntaub ntawv Specification |
|
Nominal Voltage / Rated Peev Xwm |
12.8V / 50Ah |
|
Tag Nrho Cov Hluav Taws Xob |
640 wb |
|
Cell Quality / Hom |
Qib 1 Prismatic LiFePO4 Cells |
|
Sab hauv pob Topography |
4S1P Configuration |
|
Nruam Charge / Discharge Tam sim no |
25A / 50A |
|
Maximum Peak Discharge Current |
100A (tsawg dua lossis sib npaug li 3 vib nas this) |
|
Them txiav-off / Tshem tawm qhov hluav taws xob kawg |
14.6V / 10.0V |
|
BMS Kev Tiv Thaiv Kev Tiv Thaiv |
OVP, UVP, OCP, SCP, Active Thermal Cut- tawm |
|
Khoom vaj khoom tsev & nplaim ntsuas |
Hnyav -Lub luag haujlwm ABS Yas / UL94-V0 |
|
Ib puag ncig kev ua haujlwm kub |
Them nqi: 0℃txog 50℃/ Tawm: -20℃txog 60 degree |
|
Kev ua haujlwm siab tshaj plaws |
4,500 m |
|
Waterproof Enclosure Rating |
IP65 |
|
Suav Tsim Lub Neej |
Ntau dua lossis sib npaug rau 10 Xyoos |
Kev Tswj Xyuas Zoo & Cov Qauv Ntiaj Teb
Peb lub Hoobkas siv qhov xoom- qhov tsis zoo validation pipeline rau txhua txhua 12V 50Ah roj teeb hlua. Cov txheej txheem ntau lawm suav nrog kev siv lub tshuab laser-welding validation, cell muaj peev xwm muab qhab nia tsawg dua lossis sib npaug ntawm 2mΩ kuj sib txawv, thiab kev ua kom tiav 100% tag nrho- lub Hoobkas muaj peev xwm kuaj muaj 48- teev tas li them nqi-pas laus raws tu qauv. Peb cov chaw tsim khoom ua raws li kev cai thoob ntiaj teb kev xa khoom thiab kev nyab xeeb, txhawb nqa los ntawm TUV, CE, RoHS, UN38.3, thiab ntawv pov thawj MSDS cov ntaub ntawv rau thoob ntiaj teb kev faib dej hiav txwv.
Ntim & Logistics Safety
Txhawm rau lav kev nyab xeeb kev thauj mus los raws li Chav Kawm 9 Cov Khoom Muag Khoom Tsis Txaus Siab, txhua lub pob 12V 50Ah roj teeb tau ntim rau hauv ob lub siab -phab ntsa UN- ntawv pov thawj thawv nrog hnyav - lub luag haujlwm poob siab - nqus EVA ua npuas ncauj. Rau qhov loj - nplai B2B faib thiab EPC qhov kev xa khoom, cov thawv ntim tau muab tso rau hauv fumigation-cov ntoo pallets dawb, qhwv hauv siab-lub zog tiv thaiv- zaj duab xis tiv thaiv zoo li qub, thiab ruaj khov nrog cov qauv steel strapping kom muaj kev ruaj ntseg thaum hla dej hiav txwv.
Tej yam kev thov Scenarios
Qhov no sib sib zog nqus- voj voog 12.8V 50Ah fais fab module yog dav siv rau hauv hnub ci-powered RV auxiliary daim phiaj, tawm-daim phiaj marine trolling motors, portable solar irrigation boxes, sab nraum zoov telecom telemetry enclosures, thiab thaum muaj xwm ceev backup fais fab mov rau kev sib cais network.
FAQ
Q: Puas yog 12V 50Ah LiFePO4 roj teeb ua haujlwm siab -kev co RV ib puag ncig yam tsis muaj kev hloov pauv ntawm tes?
A: Yog. Lub hlwb sab hauv Tier 1 raug kaw rau hauv cov txheej txheem ntawm tes tuav matrix nrog silicon dampening pads thiab hnyav - lub luag haujlwm busbars. Qhov kev sib dhos no txo cov kev poob siab thiab kev co uas tshwm sim rau cov tsheb hla dhau thiab cov cav nkoj hauv hiav txwv.
Q: Yuav ua li cas BMS kev koom ua ke tswj kev them nyiaj nkag los ntawm siab - tso zis hluav taws xob hloov hluav taws xob?
A: Sab hauv 50A kho vajtse BMS txwv overcurrent spikes los tiv thaiv cell chemistry. Thaum sib koom ua ke rau hauv RV alternator teeb, lub siab DC - rau - DC roj teeb charger yuav tsum tau nruab los tswj qhov hluav taws xob thiab tswj kom zoo 14.6V qhov profile.
Q: Lub Hoobkas ua lub sij hawm rau kev cai M8 davhlau ya nyob twg orientations thiab private labeling?
A: Tus kheej daim ntawv lo laser luam ntawv ntawm tus qauv Tshuag xav tau 5 mus rau 7 hnub ua haujlwm. Cov kev hloov kho uas muaj xws li kev cai davhlau ya nyob twg txoj hauj lwm los yog lwm yam ABS casing pwm yuav tsum tau 25 mus rau 30 hnub kom tiav engineering validation thiab structural tooling verification.
Muaj zog Hu rau Kev Ua Haujlwm (CTA)
Thov ib daim kab xev xaim meej thiab cov lag luam wholesale qhov project quote hauv 24 teev. Batch OEM kuaj muaj rau kev kuaj zoo.
Cim npe nrov: 12v 50ah lifepo4 roj teeb rau hnub ci & rv, Tuam Tshoj 12v 50ah lifepo4 roj teeb rau hnub ci & rv manufacturers, lwm tus neeg, Hoobkas
